Sun Live: tell an observed solar image from a 3D illustration
Sun Live combines solar imagery with active-region and flare information. Those panels are useful together, but they are not interchangeable observations. A solar image, a NOAA region report, and a GOES X-ray measurement can have different update times. The first task is to identify the source and timestamp of the panel you are reading.
In this guide
- Sun Live: tell an observed solar image from a 3D illustration
- Start with the image source and observation time
- Wavelengths show different parts of the solar atmosphere
- What the 3D globe is—and what its hidden side is not
- Active regions and flare classes answer different questions
- A flare is not an incoming CME
- A useful reading sequence
- Questions readers often ask
- Sources

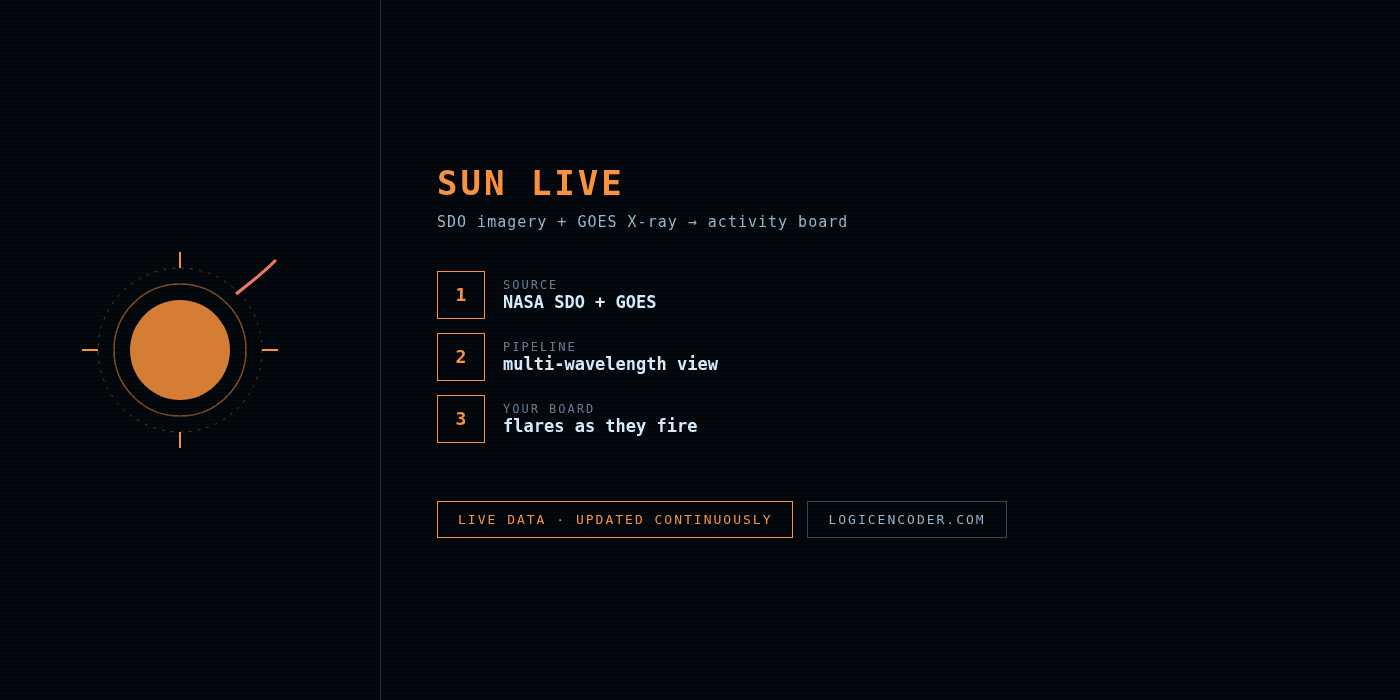

Open Sun Live in Celestial Lab. The dashboard includes Overview, Solar disk, Solar globe 3D, Schematic, Wavelengths, Regions, Flares, Stats, Guide, and Settings. Start with the disk and region table; use the 3D globe to understand spatial context. A visually impressive surface is not evidence of a new observation on the far side of the Sun.
Start with the image source and observation time
The available image can come from a specific instrument and channel, including the SOHO EIT 195 channel used as a fallback. Do not label every solar image “live SDO.” Check the actual provider and channel shown with that image. When a source falls back or stops refreshing, its age is part of the information you need.
There are at least three relevant times: when the instrument observed the Sun, when the source published the image, and when this dashboard retrieved it. A freshly loaded web page can display an older observation. Refreshing a page cannot create a newer instrument frame that the source has not published.
If the disk and the active-region table appear inconsistent, first compare their times. A region report can describe a different moment from the image. If data are unavailable, preserve that distinction; a blank or stale panel is not evidence that solar activity has stopped.
Wavelengths show different parts of the solar atmosphere
Solar channels are not simply colour filters that you could reproduce by looking through tinted glass. They respond to different wavelengths, instruments, and emitting conditions. Many familiar solar images use assigned colours to make structures visible.
| View or channel | Useful interpretation | What it does not establish |
|---|---|---|
| HMI continuum near 6173 Å | The photosphere and visible sunspot structure | A direct photograph of hot coronal plasma |
| AIA 171 Å | Structure commonly associated with the quieter corona | A naked-eye yellow Sun or a complete temperature map |
| AIA 193 Å | Coronal structure and emission that also responds to very hot flare plasma | A single temperature for every bright feature |
| AIA 304 Å | Features in the chromosphere and transition region | The same layer shown by a continuum image |
| SOHO EIT 195 Å | Extreme-ultraviolet solar structure from the specified SOHO source | Proof that the displayed frame came from SDO |
The Å symbol means ångström, a unit of wavelength; 10 Å equals 1 nanometre. The exact interpretation depends on the instrument response. Use channel comparisons to ask better questions, not to turn colour into a direct measurement of severity.
What the 3D globe is—and what its hidden side is not
Solar disk keeps the source observation as a disk view. Solar globe 3D projects the observed image onto the front of a sphere and adds independently sourced NOAA region pins. Rotation makes the spatial relationship easier to inspect. The dark hemisphere marks an unobserved side in this view; the application does not manufacture a current photograph of it.
The surface presentation and glow are illustrative. Region coordinates can be source-backed while the artistic surface treatment is not a magnetic-field measurement. A pin’s position comes from a region report, so it may not line up perfectly with features in a frame taken at another time.
Drag to change the view, then return to the observed front when you want to compare a region with the image. Do not interpret a enlarged pin, bright glow, or apparent surface height as the size or intensity of a real solar event. Those are interface choices used to make a small feature readable.
Active regions and flare classes answer different questions
A NOAA active-region identifier names a reported region. It is not a permanent coordinate, because rotation changes the region’s apparent position. Region characteristics and forecasts are useful context, but a forecast percentage is not a promise that a flare will happen.
The region table and any summary probability need their aggregation rule. For example, a highest individual-region probability is not automatically a combined whole-Sun probability. Avoid summing percentages from multiple regions or reading the largest value as a mathematically complete probability for all solar activity.
GOES flare classes describe X-ray flux in a specified band. The familiar A, B, C, M, and X classes increase by powers of ten across class boundaries. Within a class the number matters: M2 is twice the flux level of M1, while X1 is ten times M1. Classification is a measure of the observed X-ray signal, not a complete prediction of the impact at your location.
A flare is not an incoming CME
Flare radiation reaches Earth in about eight minutes. A coronal mass ejection is moving material and can take many hours or days to arrive if its path intersects Earth. Measurements near the Sun–Earth L1 point provide a shorter warning before that material reaches Earth. Confusing these clocks makes a dramatic image look like an immediate geomagnetic forecast.
Use Space Weather for solar-wind, geomagnetic, and alert context. An X-class flare does not by itself establish that an Earth-directed CME occurred, that it will arrive at a particular time, or that aurora will be visible from your town. Direction, magnetic conditions, timing, darkness, and local weather all matter.
A useful reading sequence
- Read the image provider, channel, and observation age.
- Identify a structure on the observed disk before rotating the globe.
- Compare the region table’s timestamp and identifiers with the image.
- Read a flare entry with its class and event time; do not substitute the latest disk image for that event’s evidence.
- For possible Earth effects, follow the separate space-weather measurements and official alerts.
- If a frame or report is stale, keep the last observation’s date visible in any conclusion you share.
Questions readers often ask
Why are the Sun’s colours different between channels?
The channels measure different wavelengths and use colour mappings. They are not all ordinary visible-light photographs.
Is the far side on the 3D globe observed live?
No. This view distinguishes the observed front from the unobserved hemisphere. Rotation is an explanatory presentation, not new imagery.
Why does a NOAA pin not match the bright patch exactly?
The reports and images can have different times and coordinate context. Check their sources before treating a visual offset as a change in solar activity.
Does an X-class flare guarantee a geomagnetic storm?
No. Flare radiation and the arrival of solar material are different phenomena. Use the relevant observations and official forecast for the claimed effect.
Sources
NASA’s SDO channel guide identifies instrument and wavelength context. SOHO’s real-time image page identifies its available channels. NOAA GOES X-ray flux documentation describes the flare measurement; NOAA’s CME explanation explains the separate travel time of solar material.
